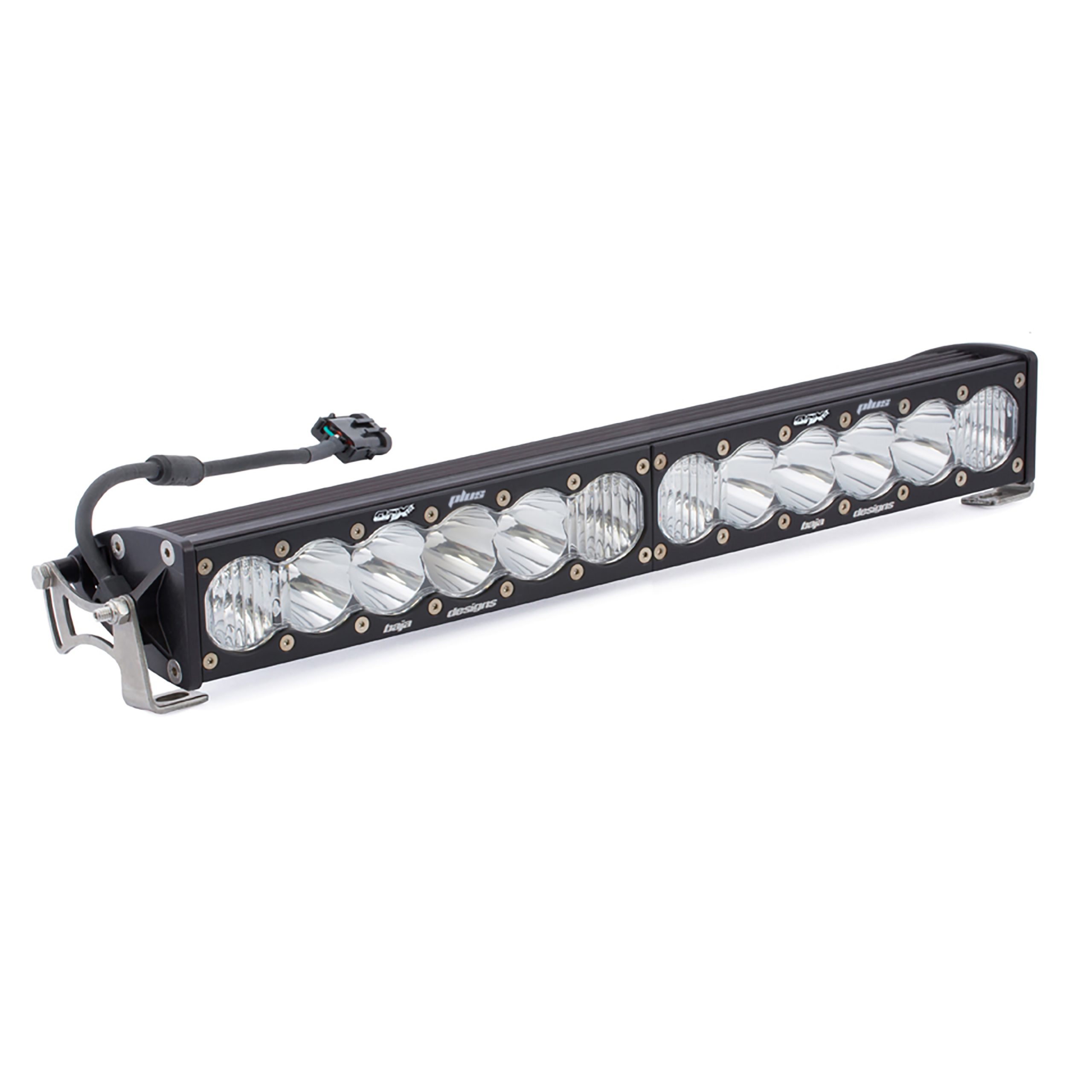

Baja Designs OnX6 Off-Road High-Power LED Light Bars 20″

OnX6 Off-Road High-Power LED Light Bars – 20″

At an impressive 24,920 lumens, the brightest just got up to 69% brighter than our previous generation.  The OnX6+ LED light bar also integrates Baja Designs’ trademarked High Speed Spot™ reflector, the same one used by the Baja Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet.  In addition, the OnX6+ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

This bar is equipped with BMT – Battery Management Technology

  • Elimination Of Flickering at Low Voltage
  • Added Protection to Vehicle Wiring and Systems
  • Protection from Dangerous Current Spikes

The OnX6+ LED Light Bar is BRIGHTER. BOLDER. BETTER.



$1,343.81

Qty:

Includes:

  • OnX6+ 20” LED Light Bar
  • Mounting Brackets
  • Hi-Low Dongle

Patterns:

Driving/Combo: Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Driving:  BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Racer Edition Spot:  A 4° beam focus for illumination WAY down the trail or road.  The Racer Edition Spot is for speeds of 110+ MPH or if you need to see a mile+ away. This is the latest version for the Baja Team Enlightened racers and is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 5+)

2016 Lighting Zones Chart

Specifications

  • Lumens: (High) 24,920 (Low) 18,460 Utilizing 12 Cree LEDs
  • Wattage/Amps: (High) 216W / 16.6A (Low) 160W / 12.0A
  • Dimensions: 20" x 4.29" x 2.69"
  • Weight: 7.85 lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft & Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)
